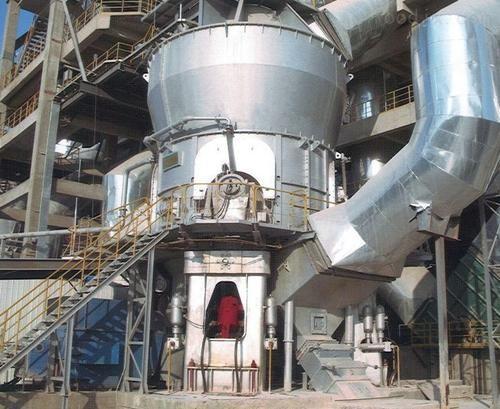

    Q235A 120tpd Vertical Roller Industrial Grinding Mill

    Ask Lasest Price
    Brand Name : Pengfei
    Model Number : PFM
    Certification : ISO,CE,
    Price : USD600000-USD6000000
    Supply Ability : 1 SET PER 180days
    Delivery Time : 180 days
    • Product Details
    • Company Profile

    Q235A 120tpd Vertical Roller Industrial Grinding Mill

    Q235A 120tpd Vertical Roller Industrial Grinding Mill


    Pengfei Group completed to manufacturing the main machines of Pakistan PLC 3000t/d cement production line for Hefei Cement Research & Design Institute successfully, and then got the business to manufacturing the main machines for Pakistan PLD, PLE and PLF Production Line. The company has taken on the complete project of eight cement production lines like Myanmar Thayet, Dragon, Triple A, King Elephant and Tiger Head Cement Plant, as well as the business to manufacturing the rotary kiln and cement mill for two 2500t/d cement production lines of Vietnam Kaisa Cement Plant. Pengfei Group has contracted the complete set of 1500t/d cement production line with Africa Rwanda company, and the project includes the process from the limestone crushing to the finished cement products, the electrical automation design, the equipments for the whole factory as well as the services of installation & debugging, personnel training, etc. At the same time the company implements the turn-key basis project of 2500t/d cement production line for Russia Volga Cement Plant.

    Our board chairman and general manager, Mr. Wang Jia’an, warmly welcome all the overseas experts, colleagues and friends to come to our company, and survey and discuss about cooperation business and make great future together

    OUR COMPANY IS MAINLY PRODUCE CEMENT MAKING MACHINERY,LIKE BALL MILL,ROTARY KILN,ROLLER PRESS,BAG HOUSE,ESP AND ETC

    1.General Condition,,,

    Model HRM&Model PRM roller mills are new equipment designed by digesting and assimilating advanced technology introduced from other countries.it through grinding rollers to roll and press the materials(0-40mm)on the rotating grinding pan with pressure and grind them to be reached up to the relevant finess.it has good advantages of high griding efficiency.big drying capacity.product finess is easy to be adjusted.low noise,low power consumption,simple process flow.low abrasiveness,operating cost saving and etc.

    under the same process conditions and rotating speed.grinding pan diameter material level.grinding roller pressure are all the same,grinding efficency of Model PRM roller mill can be raised more than 30%,average power consumption can be saved about 8.2%,and impact vibration of the overall unital could be obviously reduced.

    With international advanced technology and national leading manufacturing quality.it has passed the ministry-level test and listed as state level new preouct in 1995

    2.The technical parameter

    1.The inlet size is less than 80mm

    2.The permited inlet moisture is 6%.

    3.The mill speed is 29.75r/min

    3.The specification of roller mill

    Model and specifications
    Diameter of millstone D
    Median diameter of roller d
    Quantity of roller n
    Standard installed power P
    Standard ability Q
    (mm)
    (mm)
    n
    (kw)
    (t/h)
    PFM30.31
    3000
    1600
    3
    1250
    55~60
    PFM32.31
    3200
    1700
    3
    1600
    65~80
    PFM35.41
    3500
    1800
    4
    1800
    85~100
    PFM40.41
    4000
    1900
    4
    2500
    115~125
    PFM43.41
    4300
    2120
    4
    3000
    135~145
    PFM46.41
    4600
    2240
    4
    3350
    150~160
    PFM48.41
    4800
    2240
    4
    3350
    170~180
    PFM50.41
    5000
    2360
    4
    3900
    190~200
    PFM53.41
    5300
    2500
    4
    4600
    210~230
    PFM56.61
    5600
    2500
    6
    5300
    235~250
