    660ton Per Hour Vertical Roller Industrial Grinding Mill

    Ask Lasest Price
    Brand Name : Pengfei
    Model Number : PFM
    Certification : ISO,CE,
    Price : USD600000-USD6000000
    Supply Ability : 1 SET PER 180days
    Delivery Time : 180 days
    • Product Details
    • Company Profile

    660ton Per Hour Vertical Roller Industrial Grinding Mill

    660ton Per Hour Vertical Roller Industrial Grinding Mill


    Our board chairman and general manager, Mr. Wang Jia’an, warmly welcome all the overseas experts, colleagues and friends to come to our company, and survey and discuss about cooperation business and make great future together


    OUR COMPANY IS MAINLY PRODUCE CEMENT MAKING MACHINERY,LIKE BALL MILL,ROTARY KILN,ROLLER PRESS,BAG HOUSE,ESP AND ETC

    1.General Condition,,,

    Model HRM&Model PRM roller mills are new equipment designed by digesting and assimilating advanced technology introduced from other countries.it through grinding rollers to roll and press the materials(0-40mm)on the rotating grinding pan with pressure and grind them to be reached up to the relevant finess.it has good advantages of high griding efficiency.big drying capacity.product finess is easy to be adjusted.low noise,low power consumption,simple process flow.low abrasiveness,operating cost saving and etc.

    under the same process conditions and rotating speed.grinding pan diameter material level.grinding roller pressure are all the same,grinding efficency of Model PRM roller mill can be raised more than 30%,average power consumption can be saved about 8.2%,and impact vibration of the overall unital could be obviously reduced.

    With international advanced technology and national leading manufacturing quality.it has passed the ministry-level test and listed as state level new preouct in 1995

    2.The technical parameter

    1.The inlet size is less than 80mm

    2.The permited inlet moisture is 6%.

    3.The mill speed is 29.75r/min

    3.The specification of roller mill


    Model and specifications
    Diameter of millstone D
    Median diameter of roller d
    Quantity of roller n
    Standard installed power P
    Standard ability Q
    (mm)
    (mm)
    n
    (kw)
    (t/h)
    PFM12.20
    1200
    900
    2
    110
    5
    PFM16.20
    1600
    1000
    2
    250
    12
    PFM18.20
    1800
    1120
    2
    330
    18
    PFM20.30
    2000
    1250
    3
    430
    20
    PFM22.30
    2200
    1400
    3
    590
    30
    PFM23.30
    2300
    1450
    3
    640
    35
    PFM26.30
    2600
    1600
    3
    810
    44
    PFM28.30
    2800
    1750
    3
    1000
    55
    PFM30.30
    3000
    1900
    3
    1250
    65
    PFM35.30
    3500
    1900
    3
    1400
    70

    4.The setch of roller mill

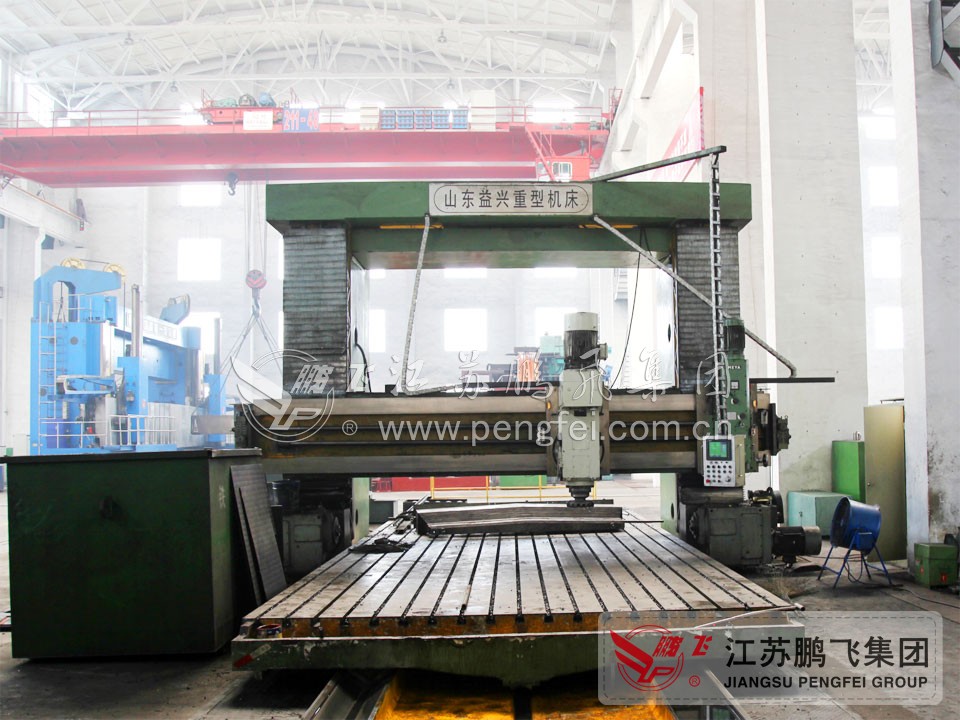

    Workshop
