    25ton Per Hour Q235A Vertical Roller Cement Grinding Mill

    Ask Lasest Price
    Brand Name : Pengfei
    Model Number : PFM
    Certification : ISO,CE,
    Price : USD600000-USD6000000
    Supply Ability : 1 SET PER 180days
    Delivery Time : 180 days
    • Product Details
    • Company Profile

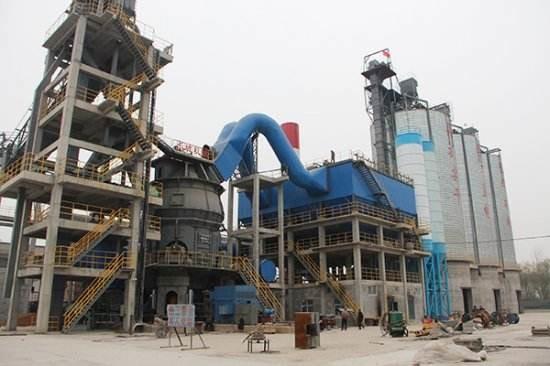

    25ton Per Hour Q235A Vertical Roller Cement Grinding Mill

    25ton Per Hour Q235A Vertical Roller Cement Grinding Mill


    In 2020, affected by the outbreak of new coronavirus pneumonia, the time for enterprises to return to work was delayed. However, since the resumption of work on February 10, all work has gradually entered the normal track, and by February 24, all work has been resumed in place, with a return rate of 100%.In 2020, Pengfei group will focus on the goal of sales growth of more than 15% and tax growth of more than 10%, focus on the three key tasks of listed fund-raising investment, production line EPC and overseas investment, implement the strategy of science and technology, internationalization, capitalization and refinement, and promote the high-quality development of Pengfei group to a new level in accordance with the requirements of high-quality redevelopment and legal compliance of Hong Kong listing.


    No.Instruction of parameterUnitTechnical parameterRemarks
    Vertical Millset1
    TypeVRM5341C
    Ground materialClinker
    Inlet material sizemm≤50
    Material moisture%≤7
    Product finess≤60 micronsClinker+gypsum and other mixed material
    Product moisture%≤0.5
    Capacityt/h160 (4200cm2/g)
    200 (3200cm2/g)
    Inlet air temperature°C<300
    Gas temperature outlet of mill90~105
    Inlet air pressurepa~-500
    Outlet air volumem3/h480000
    Outlet air pressurePa-4000~-5500
    Material feeding systemFeeding from one side and material falling from center
    1Separator
    1.1 Rotor of separator
    Speed adjusting ranger/min60~160
    Vane materialUP wear resistant plate
    Blade quantity196
    Useful lifeh>15000
    Rotor diametermØ4.6
    Total height of rotormm2600
    Steel plate thickness of housingmm25
    1.2 Rotor bearing of separatorpcs2
    Lower bearing type23134CC/W33
    Upper bearing type29434E
    ManufactureSKF
    1.3 Drive unit of separator
    Speed adjusting wayFrequency conversion
    Motor typeYVP355M-4VVVF
    PowerkW250
    VoltageV380
    Speedr/min1450
    ManufactureSiemens of China
    Insulation gradeIP54
    Gear box typeB2SV09-9-B
    Gear ratio8.8
    Permitted input powerkW450
    ManufactureFLENDER of China
    2Roller unit
    2.1 Roller
    Quantitypcs4
    Diametermm2400
    Width of rollermm850
    ShapeTyre shape
    Roller assembly weightt28.7
    Inspect systemOil cylinder for auxiliary repair
    2.2 Roller tyre
    MaterialZG20SiMn+ surface hardfacing
    HardnessHRC>58~62
    Useful lifeh>2,000
    2.3 Roller shaft40CrNiTempering and quenching
    2.4 Roller bearing
    Bearing type

    BC-6104

    480×855×270

    BT2-6104

    480×890×390

    Useful lifeh>35,000
    Allowable max. temperature rise of bearing80
    2.5 Sealing air fan
    Type9-28ⅠNo4.5A-8
    Quantitypcs1
    2.6 Roller bearing lubrication
    Lubrication typeCirculating oil
    Type of lubrication oil stationXRZ-2×16-2×10
    Qty2pcs
    Oil pressureMPa0.4
    Flow ratel/min20
    3Grinding table
    3.1 Table body
    MaterialZG270-500
    Nominal diametermm5300
    Speedr/min22.6
    Height of dam ringmm~200
    3.2 Liner of grinding table
    MaterialZG20SiMn+ surface hardfacingUP
    HardnessHRC>58~62
    Useful lifeh>2,000
    4Upper housing
    4.1 HousingQ235-A
    4.2 Liner inside the housingQ235-ACHP 6mm
    Useful lifeh>20,000
    4.3 Inspection door
    Quantitypcs2
    5Rocker
    5.1upper rocker+ lower rocker
    Quantitygroup4
    Material of rockerZG35+Q235
    Material of rocker shaft40CrTempering and quenching
    5.2 Rocker bearing
    Quantitypcs8
    6Frame part
    Framepcs4
    Connecting bridgepcs4
    Base of supportpcs1
    Base of gear boxpcs1
    7Main drive
    7.1 Main motor
    TypeYRKK900-6
    Rated powerkW4200
    Output speedr/min990
    ManufactureTECO
    Insulation gradeIP54
    href="javascript:void(0);" Rated voltagekV10
    Rated frequencyHz50
    Power factor (cosj)0.866
    Cooling modeIC611
    Type of lubrication oil stationXRZ-25
    Oil pressureMPa0.4
    Flow rateL/Min25
    High speed coupling
    TypeNo
    Connecting methodDiaphragm flexible connecting
    Qty1
    7.2 Main gear box
    TypeMLX450
    Rated powerkW4500
    Gear ratio43.7
    Measuring temperature point for Input shaftpcs2
    Vibrator(yes/No)yes
    Output speedrpm22.6
    Transmission powerkW4500
    Thrust bearingPlane shaft bush
    Lubrication oil station
    TypeXGD-C250/1250
    High pressure pump
    Qty4
    Oil pressurebar315
    Flow rateL/Min250
    MotorkW4×22
    Low pressure pump
    Oil pressurebar4~6
    Flow rateL/min1250
    MotorkW2×22
    Volume of oil tankm310
    Heaternumber6
    Rated powerkW8×6
    Temperature detector
    TypePT 100
    Temperature monitorPLC Liquid touch screen
    TypeTP277-6
    ManufactureNanjing high speed gear manufacturing Co., ltd.
    8Hydraulic system
    TypeHY53-1000AI-W
    Pressure (Normal/Max)MPa8~12/16
    Flow rate ((Normal/Max)l/min63/63
    Power (Normal/Max)kW/18.5
    Rated powerkW18.5
    Volume of oil tankL1000
    Main hydraulic elementItaly ATOS
    Control methodLong distance
    9Hydraulic system of roller
    8.1 Hydraulic cylinder of rollerpcs4
    8.2 Hydraulic station of rollerpcs1
    8.3 Roller swing cylinderpcs1
    TypeMovable
    10Water injection of mill
    Nozzlepcs4
    11Rotary air lock feeder
    Typeф1400x1500
    Quantitypcs1
    Speedrpm6
    Motor powerkW11
    12Electrical control system
    Low pressure control cabinetPcs2
